51.2V 48V 200Ah 10kWh Wall-mounted Lithium Battery (PW51200-F / IP65 / Home ESS)
- Type：48V
- Code：
-
Lithium battery Lithium iron phosphate (LFP)
Rated voltage 51.2V
Nominal capacity 200Ah
Nominal energy 10.24Wh
Dimensions (L * W * H) 850 x 550 x 200 mm
Weight 95 kg / ~209 lbs
IP level IP65
- Product Description

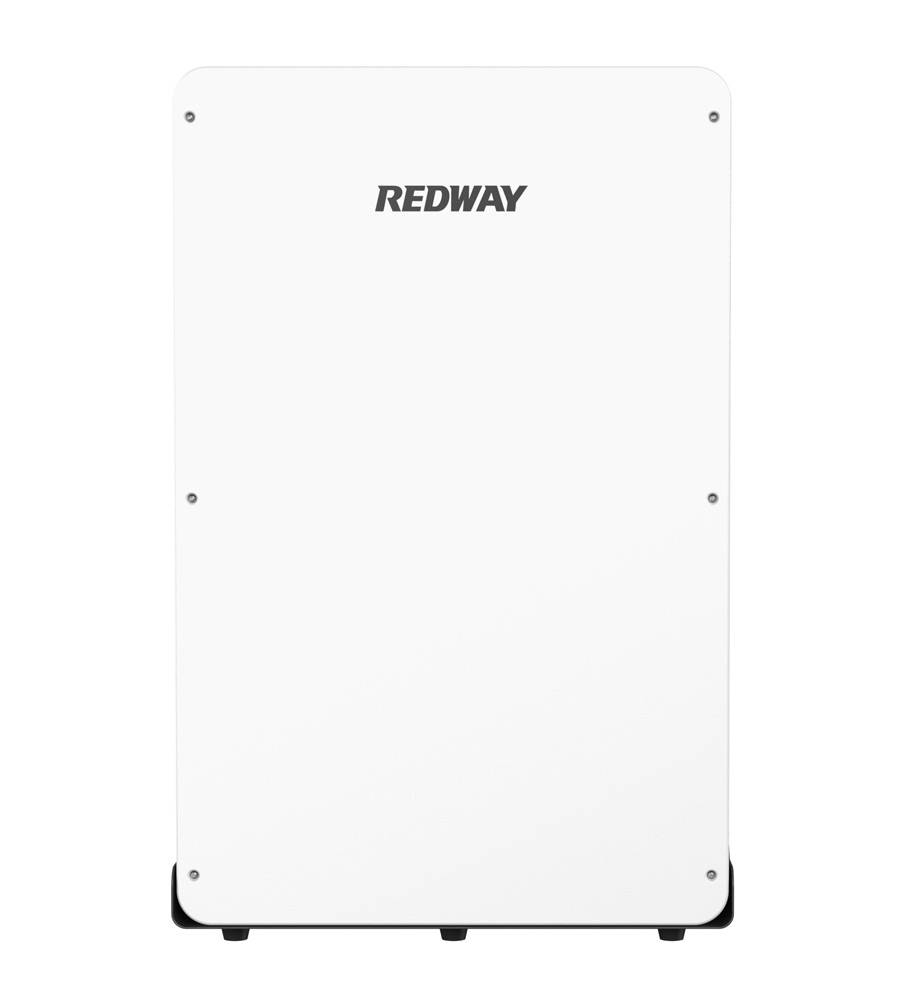

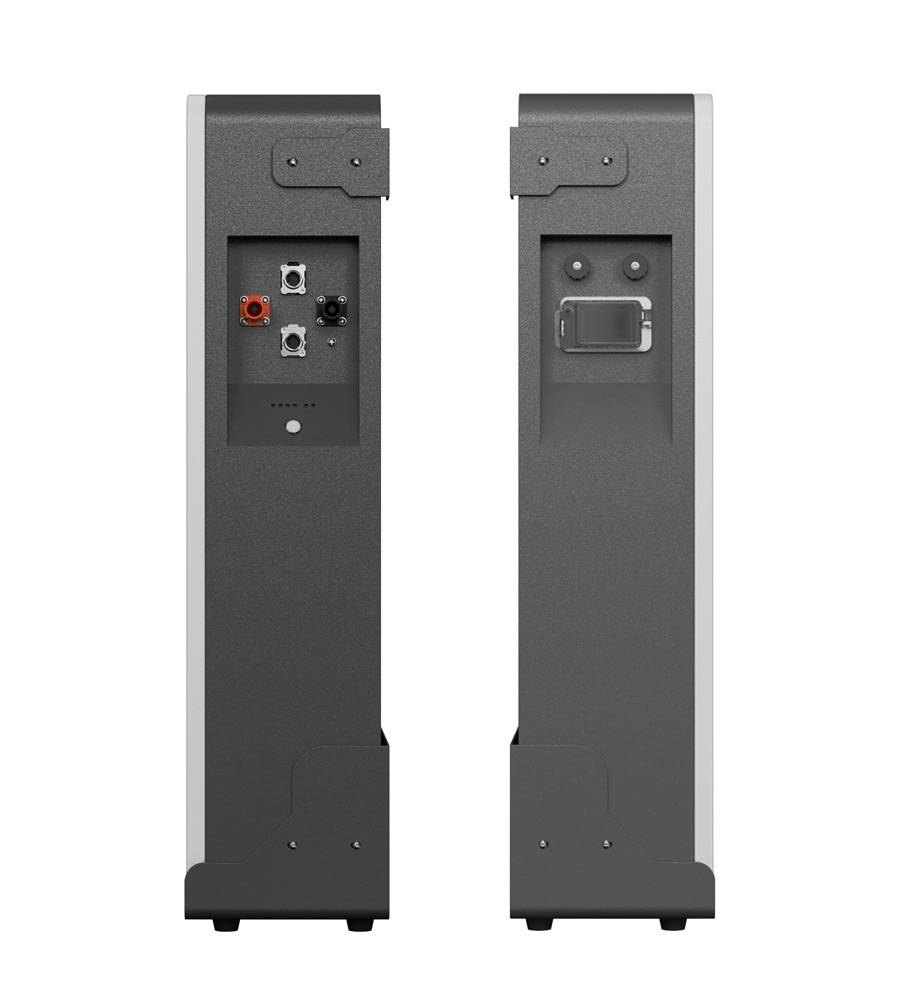

PW51200-F PowerWall
Specifications Cell Type LiFePO4 Nominal Voltage 51.2V Nominal Capacity 200Ah Nominal Energy 10.24kWh Dimensions
[L x W x H]850 x 550 x 200 mm
33.5 x 21.7 x 7.9 inchesWeight ~95kg
~209 lbsMax Charge Voltage 58.4V Discharge Cut-off Voltage 40V Max Continuous Charge Current 100A Max Continuous Discharge Current 100A Charge Temperature 0°C ~ 60°C Discharge Temperature -20°C ~ 60°C Storage Temperature 0°C ~ 45°C Max Parallel Connections 16 Cycle Life >8000 Cycles (80% DOD 0.5C) Self-discharge <2% per month IP Rating IP65 BMS JBD BMS Communication RS485 / CAN bus Optional Upgrades Bluetooth / APP / WiFi / 4G / GPS / RS232 / RJ45 / Self-heating / LCD Display / Active Balance / Single Core Quick Plug Lithium Battery Energy Storage Connector / etc. Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire Terminal M8 Compatible Inverters Victron / GOODWE / Sol-Ark / SRNE / Solis / SAJ / Growatt / Luxpower / Voltronic / SMA / Deye / Fox / etc. Color White / Gray / Black / Red / Blue / Silver Design Life 20 Years Warranty 10 Years User Manual Yes Certifications IEC62619 / UL1642 / CE / UN38.3 / MSDS Inquiry -
