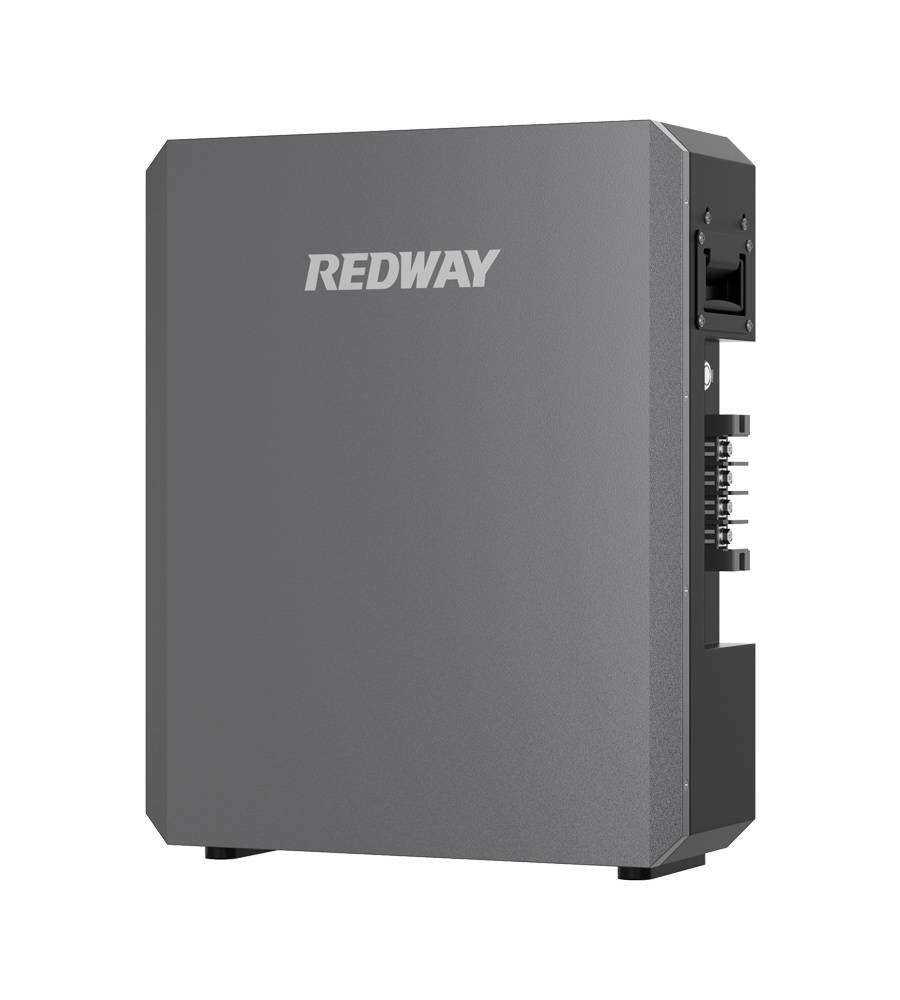

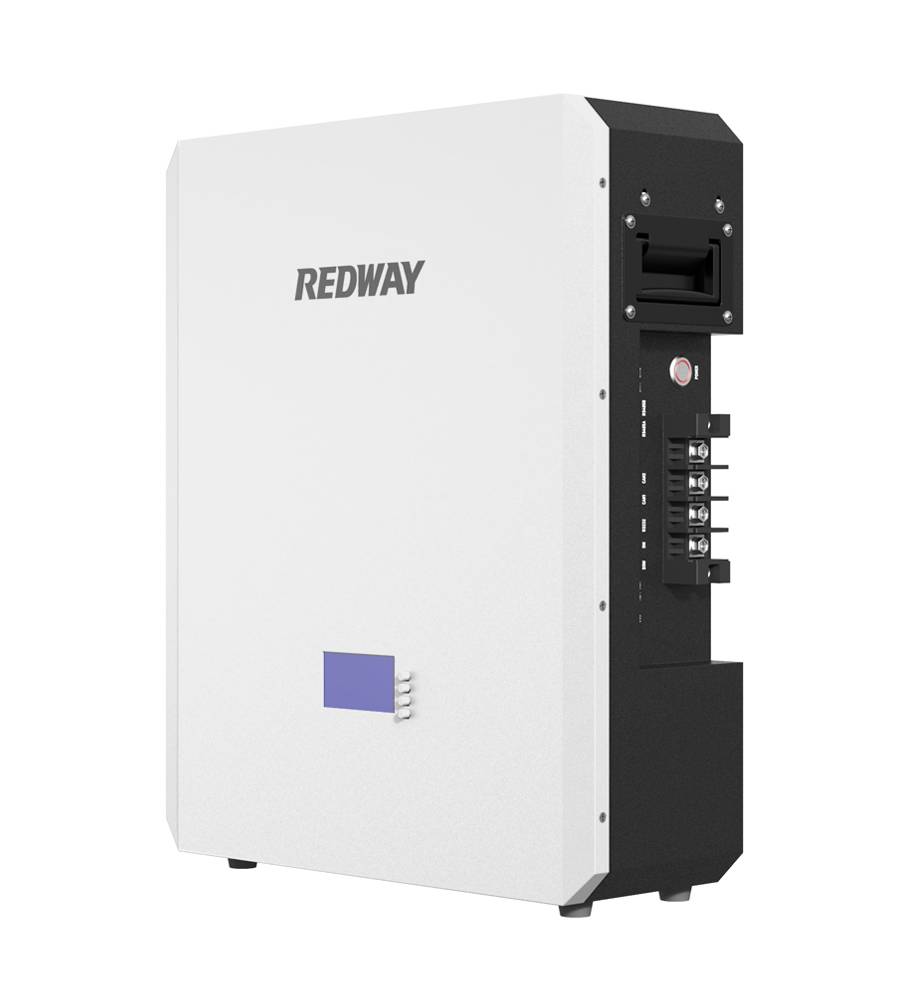

51.2V 48V 100Ah 5kWh Wall-mounted Lithium Battery (PW51100-S / Home-ESS)
- Type：48V
- Code：
-
Lithium battery Lithium iron phosphate (LFP)
Rated voltage 51.2V
Nominal capacity 100Ah
Nominal energy 5.12KWh
Dimensions (L * W * H) 532 x 425 x 170 mm / 21 x 16.7 x 6.7 inches
Weight ~45.5 kg / ~100 lbs
IP level IP65
- Product Description
PW51100-S PowerWall
Specifications Cell Type LiFePO4 Nominal Voltage 51.2V Nominal Capacity 100Ah Nominal Energy 5.12kWh Dimensions
[L x W x H]532 x 425 x 170 mm
21 x 16.7 x 6.7 inchesWeight ~45.5kg

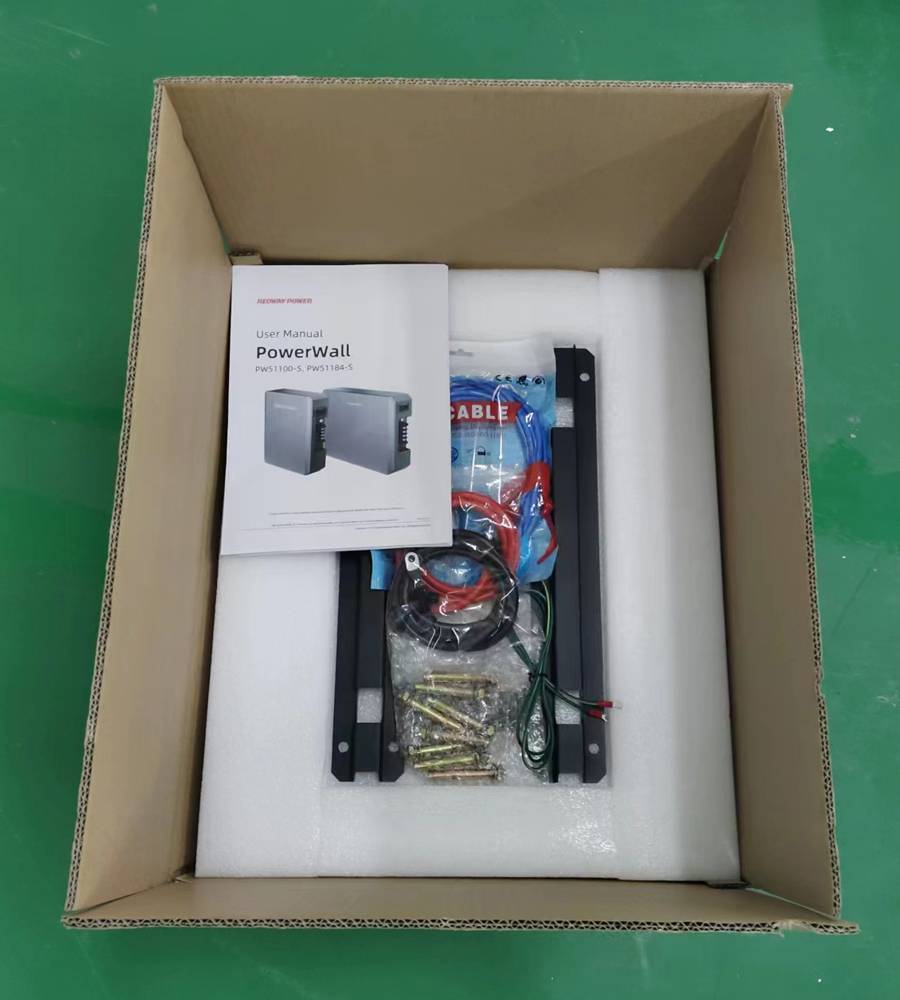

~100 lbsMax Charge Voltage 58.4V Discharge Cut-off Voltage 40V Max Continuous Charge Current 100A Max Continuous Discharge Current 100A Charge Temperature 0°C ~ 60°C Discharge Temperature -20°C ~ 60°C Storage Temperature 0°C ~ 45°C Max Parallel Connections 16 Cycle Life >8000 Cycles (80% DOD 0.5C) Self-discharge <2% per month IP Rating IP21 BMS JBD BMS LCD Display Yes Communication RS485 / CAN bus Optional Upgrades Bluetooth / APP / WiFi / 4G / GPS / RS232 / RJ45 / Self-heating / Active Balance / Single Core Quick Plug Lithium Battery Energy Storage Connector / etc. Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire Terminal M8 Compatible Inverters Victron / GOODWE / Sol-Ark / SRNE / Solis / SAJ / Growatt / Luxpower / Voltronic / SMA / Deye / Fox / etc. Color White / Gray / Black / Red / Blue / Silver Design Life 20 Years Warranty 10 Years User Manual Yes Certifications IEC62619 / UL1642 / CE / UN38.3 / MSDS Inquiry -
