PRODUCT CENTERClassify

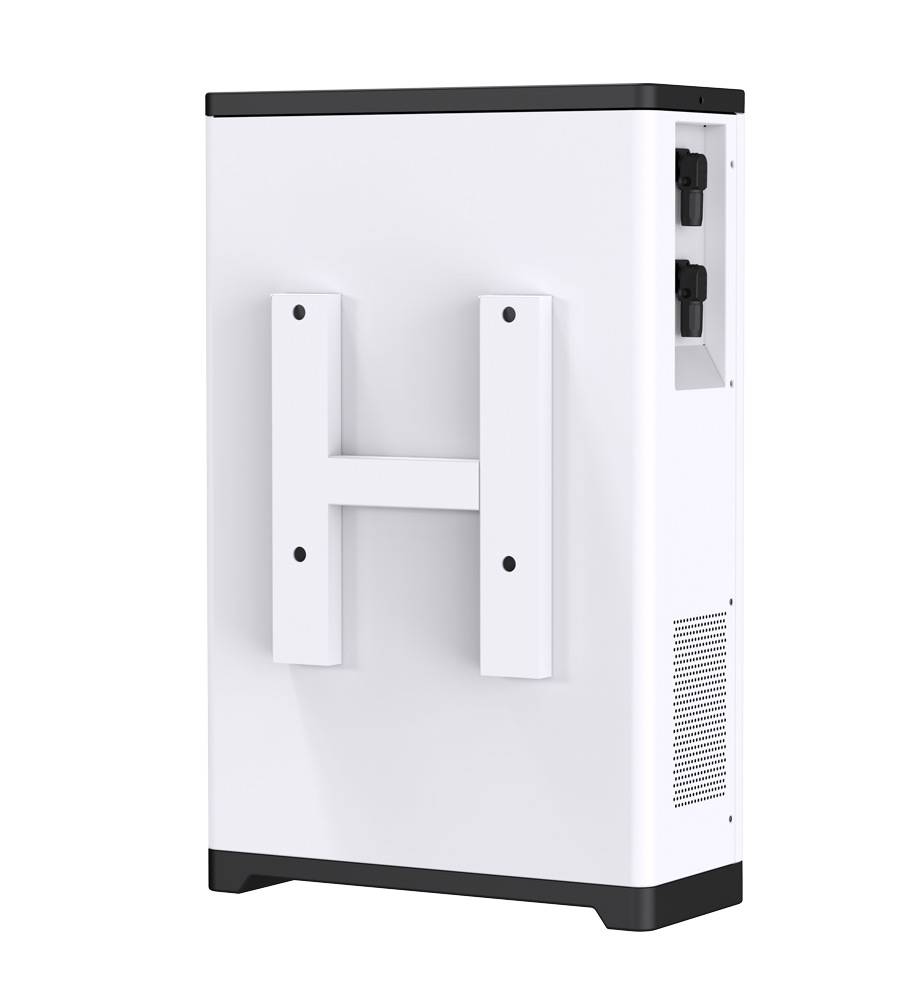

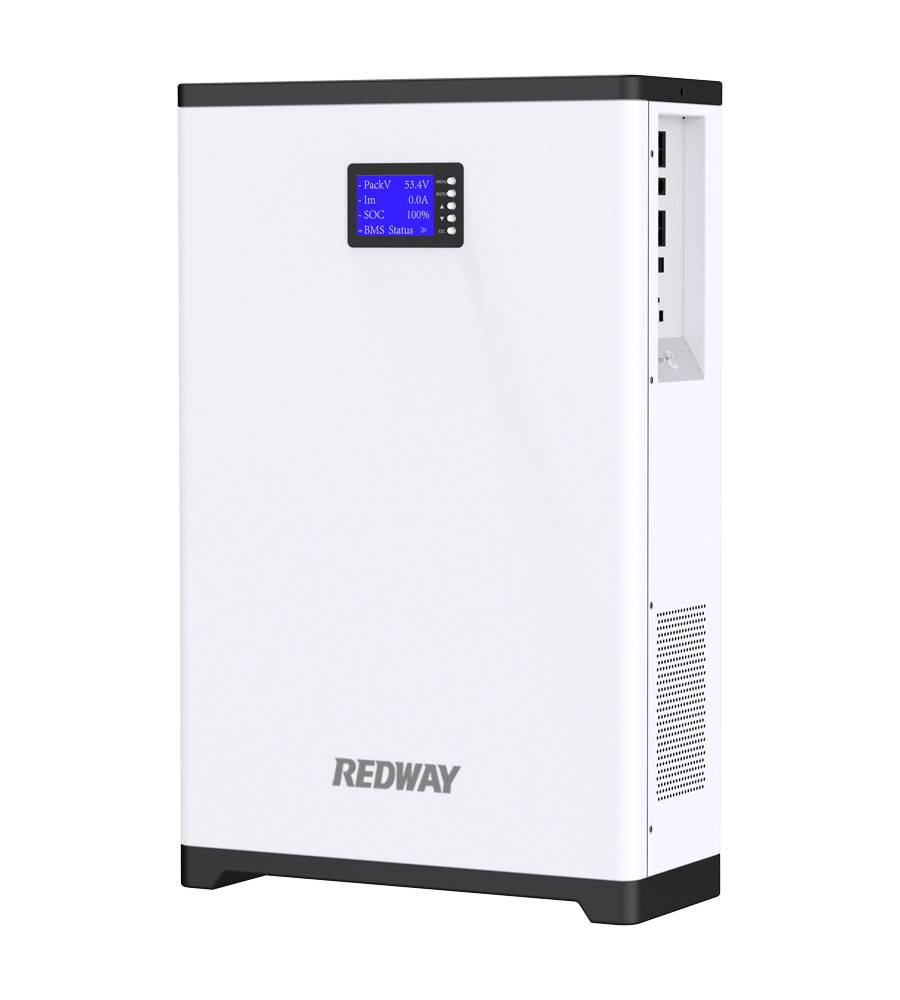

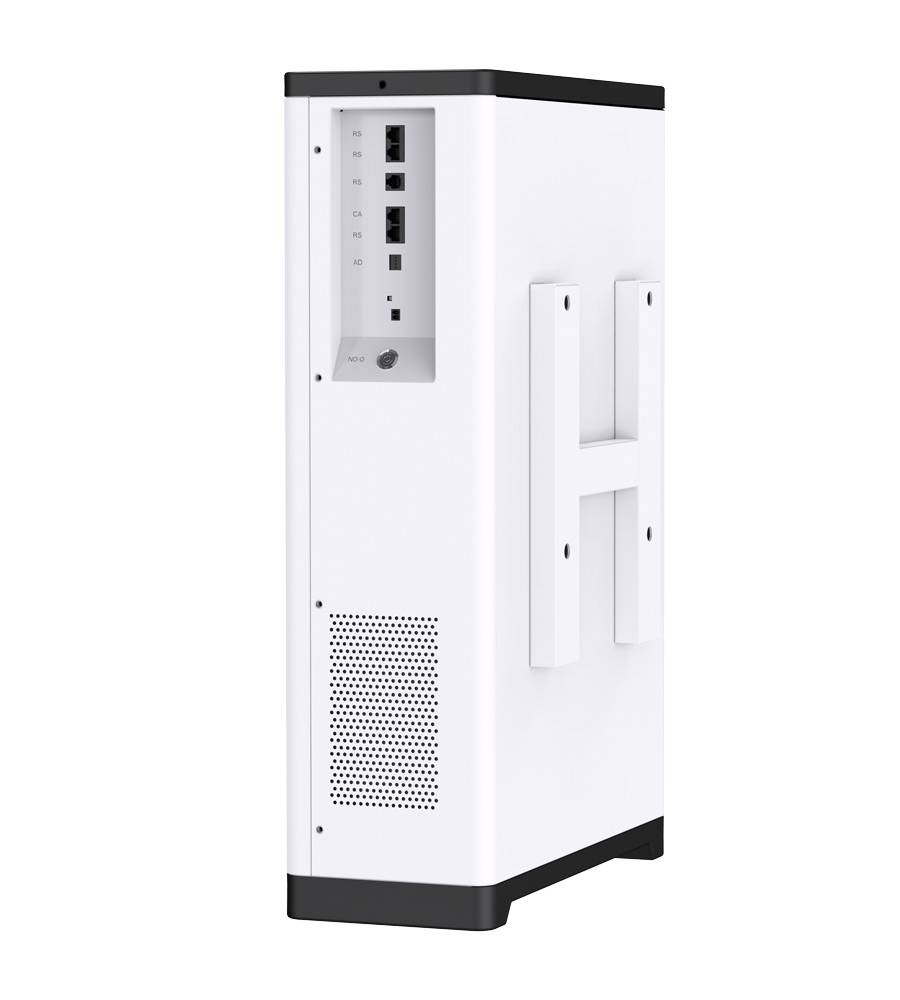

PW51100-H PowerWall Home-ESS
- Type：48V
- Code：
-
Lithium battery Lithium iron phosphate (LFP)
Rated voltage 51.2V
Nominal capacity 100Ah
Nominal energy 5.12KWh
Dimensions (L * W * H) 680 x 485 x 165 mm
Weight 46 kg
IP level IP65
- Product Description
PW51100-H Specifications Cell Type LiFePO4 Nominal Voltage 51.2V Battery Capacity 100Ah Nominal Energy 5.12kWh Dimension [L x W x H] 676 x 440 x 180 mm Weight 56kg Working Voltage 44.8V~57.6V Charge Voltage 57.6V Discharge Cut-off Voltage 44.8V Rated Charging/Discharge Current 50A Continuous Maximum Charge Current 100A Continuous Maximum Discharge Current 100A Continuous Rated Charging/Discharge Power 2560W Charging Temperature 0~55°C Discharging Temperature -20~60°C LCD Screen Yes Cooling Natural Max. Parallel Connection 4p to 20.48kWh Cycle Life (25°C / 77℉@60% DOD) >8000 Cycles Cycle Life (25°C / 77℉@80% DOD) >6000 Cycles Self-Discharge Rate <3% per month IP Grade IP20 Battery Case Metal Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit Communication RS485 / RS232 / CAN-bus Optional Functions Bluetooth / WiFi / 4G / 5G / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. Color White Design Life 20 Years Warranty 10 Years User Manual With the Battery Packaging Certification & Safety Standard UN38.3 / IEC62619 / RoHS / EMC / MSDS
-
