PRODUCT CENTERClassify
PW51100-F
- Type：48V
- Code：
-
Lithium battery Lithium iron phosphate (LFP)
Rated voltage 51.2V
Nominal capacity 100Ah
Nominal energy 5.12KWh
Dimensions (L * W * H) 680 x 485 x 165 mm
Weight 46 kg
IP level IP65
- Product Description

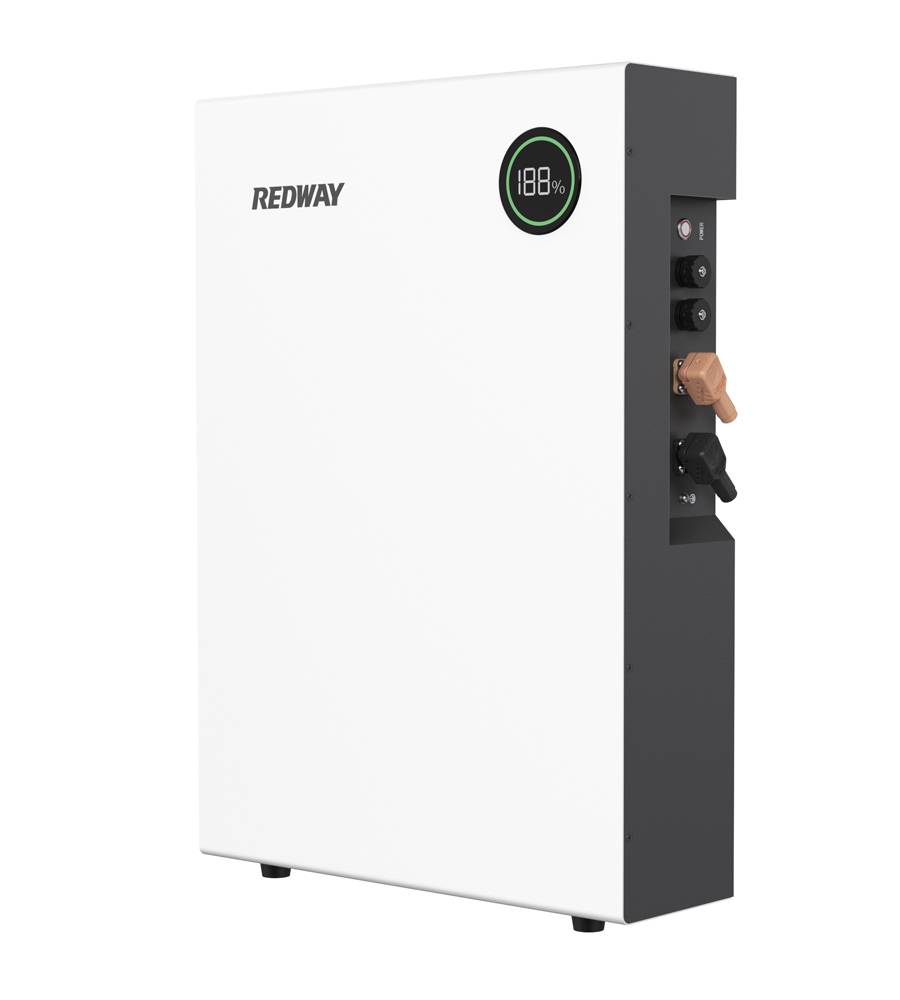

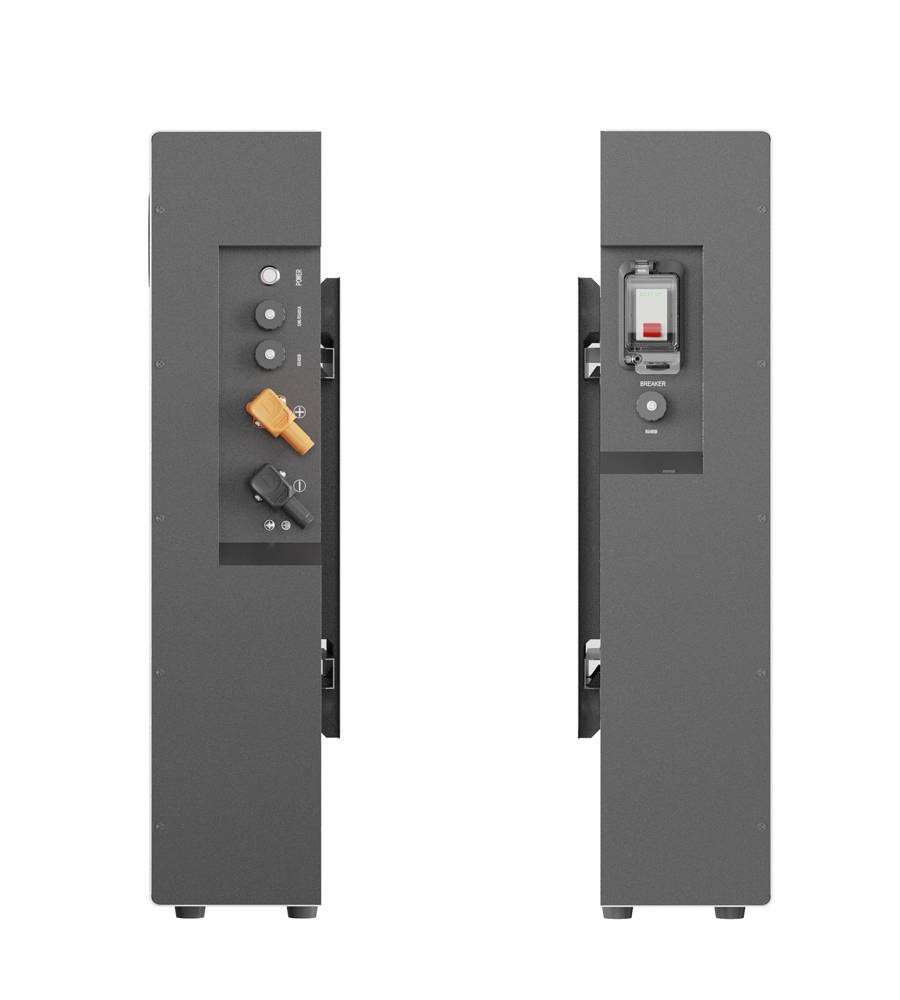

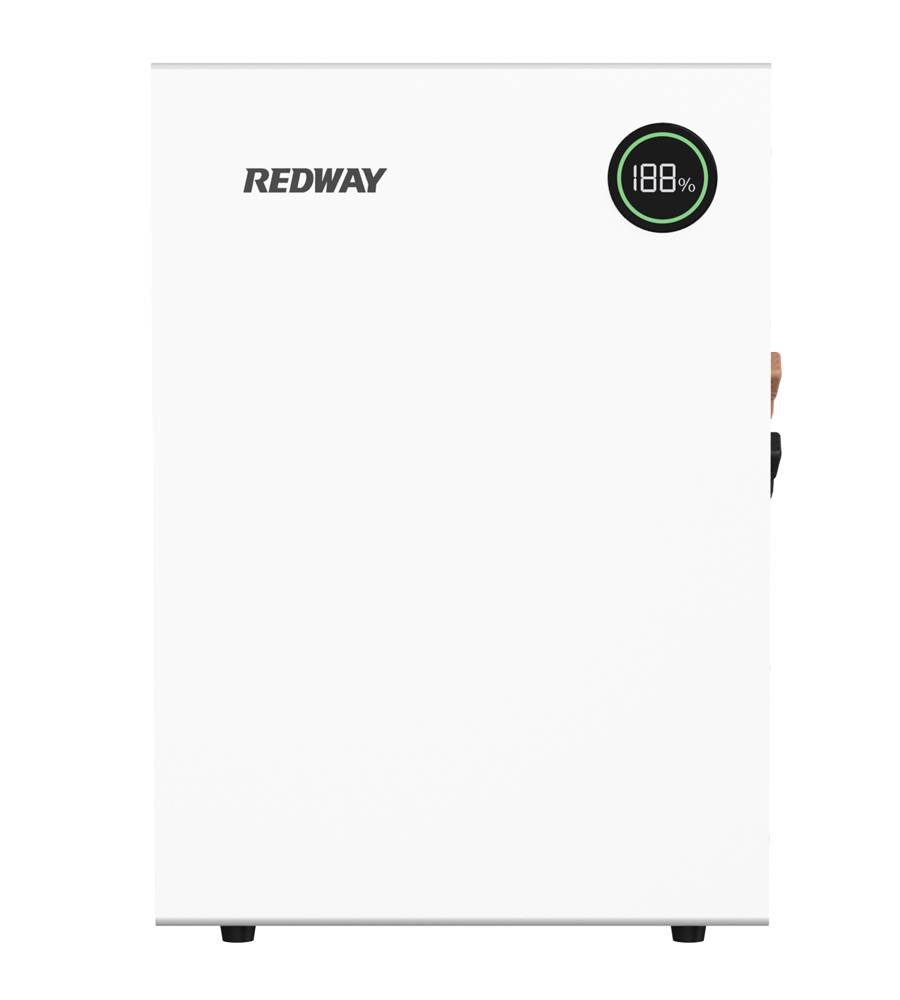

PW51100-F PowerWall
Specifications
Cell Type
LiFePO4
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Nominal Energy
5.12kWh
Dimensions
[L x W x H]680 x 485 x 165 mm
26.8 x 19 x 6.5 inchesWeight
~46kg
~101 lbsMax Charge Voltage
58.4V
Discharge Cut-off Voltage
40V
Max Continuous Charge Current
100A
Max Continuous Discharge Current
100A
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 60°C
Storage Temperature
0°C ~ 45°C
Max Parallel Connections
16
Cycle Life
>8000 Cycles (80% DOD 0.5C)
Self-discharge
<2% per month
IP Rating
IP65
BMS
JBD BMS
Communication
RS485 / CAN bus
Optional Upgrades
Bluetooth / APP / WiFi / 4G / GPS / RS232 / RJ45 / Self-heating / LCD Display / Active Balance / Single Core Quick Plug Lithium Battery Energy Storage Connector / etc.
Accessories
Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Terminal
M8
Compatible Inverters
Victron / GOODWE / Sol-Ark / SRNE / Solis / SAJ / Growatt / Luxpower / Voltronic / SMA / Deye / Fox / etc.
Color
White / Gray / Black / Red / Blue / Silver
Design Life
20 Years
Warranty
10 Years
User Manual
Yes
Certifications
IEC62619 / UL1642 / CE / UN38.3 / MSDS
-
