24V 180Ah Lithium Battery (SOC LCD Display) 24V RV lithium battery RV lithium battery Product Center 力多威锂电池、力多威家庭储能、PACK、力多威新能源有限公司

Key Features

· High Capacity: Delivers a nominal capacity of 180Ah for extensive energy storage.

· Long Cycle Life: Exceeds 6000 cycles at 80% depth of discharge (DoD) for lasting performance.

· Smart LCD Display: Provides real-time state of charge (SOC) information for user convenience.

· Robust Safety Features: Includes a comprehensive Battery Management System (BMS) for enhanced protection.

Product Description

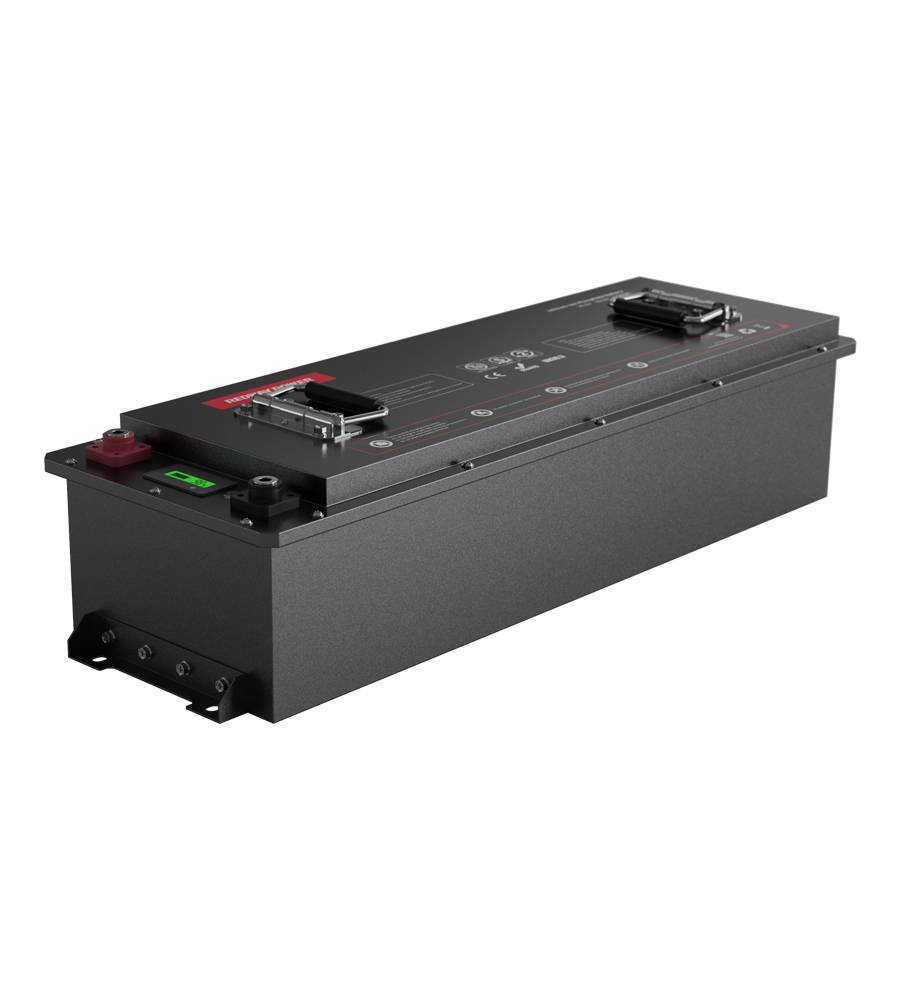

The Redway 24V 180Ah LiFePO4 Lithium Battery is designed to meet the demands of modern energy applications, featuring a nominal voltage of 25.6V and an energy output of 4710Wh. Weighing approximately 35 kg, this battery is built with a durable metal case and an IP65 rating, ensuring protection against dust and water.

With an intelligent BMS that safeguards against overcharging, overheating, and short circuits, this battery guarantees safe operation across various conditions. Customizable options are available for OEM/ODM buyers, including features like Bluetooth connectivity and self-heating capabilities. Trust Redway Power for a high-quality battery solution that enhances your energy storage capabilities efficiently.

24V180Ah LFP	Specifications
Battery Cell Type	LiFePO4
Voltage	25.6V
Capacity	184Ah
Energy	4710Wh
Peak Charge Voltage	29.2V
Discharge Cut-off Voltage	20V
Max Charge Current	100A (Continues)
Max Discharge Current	100A (Continues)
Peak Discharge Current	200A (3s)
Dimensions [L x W x H]	678 x 238 x 170 mm 26.7 x 9.4 x 6.7 inches
Weight	35 kg 77 lb
IP Rating	IP65
Max Number of Parallel & Series	4P / 4S
Internal Resistance	≤15mΩ
Cycle Life	>6000 cycles (DOD 80%)
Self-discharge	2% (per month)
Charge Temperature	0°C ~ 60°C
Discharge Temperature	-20°C ~ 60°C
Optional Upgrades	Self-heating / Bluetooth / APP / WiFi / 4G / GPS / RS485 / RS232 / CAN / Anti-theft / Active Balance
LCD Display	Yes
Charger	Optional
BMS	JBD / DALY Smart BMS Protection
Terminal	M8
Battery Case	Metal
Design Life	10 Years
Silkscreen	Yes
Label Printing	Yes
Laser Logo	Yes
User Manual	Yes
OEM / ODM	Yes
Certification	Cell: UL1642 / CE Product: UN38.3 / MSDS

24V180Ah LFP

Specifications

Battery Cell Type

LiFePO4

Voltage

25.6V

Capacity

184Ah

Energy

4710Wh

Peak Charge Voltage

29.2V

Discharge Cut-off Voltage

20V

Max Charge Current

100A (Continues)

Max Discharge Current

100A (Continues)

Peak Discharge Current

200A (3s)

Dimensions
[L x W x H]

678 x 238 x 170 mm
26.7 x 9.4 x 6.7 inches

Weight

35 kg
77 lb

IP Rating

IP65

Max Number of Parallel & Series

4P / 4S

Internal Resistance

≤15mΩ

Cycle Life

>6000 cycles (DOD 80%)

Self-discharge

2% (per month)

Charge Temperature

0°C ~ 60°C

Discharge Temperature

-20°C ~ 60°C

Optional Upgrades

Self-heating / Bluetooth / APP / WiFi / 4G / GPS / RS485 / RS232 / CAN / Anti-theft / Active Balance

LCD Display

Yes

Charger

Optional

BMS

JBD / DALY Smart BMS Protection

Terminal

Battery Case

Metal

Design Life

10 Years

Silkscreen

Yes

Label Printing

Yes

Laser Logo

Yes

User Manual

Yes

OEM / ODM

Yes

Certification

Cell: UL1642 / CE
Product: UN38.3 / MSDS

What is the nominal voltage and capacity of the Redway 24V 180Ah LiFePO4 battery?

The Redway 24V 180Ah LiFePO4 battery has a nominal voltage of 25.6V and a capacity of 180Ah, making it suitable for various applications, including solar energy systems, RVs, and marine use.

How long does the Redway 24V 180Ah battery last?

This battery boasts an impressive cycle life of over 6000 cycles at 80% depth of discharge (DoD), ensuring long-lasting performance and reliability for demanding energy applications.

What are the operating temperature ranges for this battery?

The Redway 24V 180Ah LiFePO4 battery operates effectively within a charge temperature range of 0°C to 60°C and a discharge temperature range of -20°C to 60°C, allowing versatility in various environments.

What safety features does the Redway battery include?

It features a smart Battery Management System (BMS) that provides comprehensive protection against overcharging, overheating, and short circuits, ensuring safe operation under various conditions.

Can the Redway 24V 180Ah battery be customized?

Yes, Redway offers customization options for OEM/ODM buyers, including variations in specifications and additional features such as Bluetooth connectivity and self-heating capabilities to meet specific needs.

What are the shipping options for bulk orders?

Redway provides flexible shipping options including FOB, EXW, and CIF, with delivery available via sea, air, or land in various container sizes (10FT, 20FT, 40FT) for wholesale buyers.
