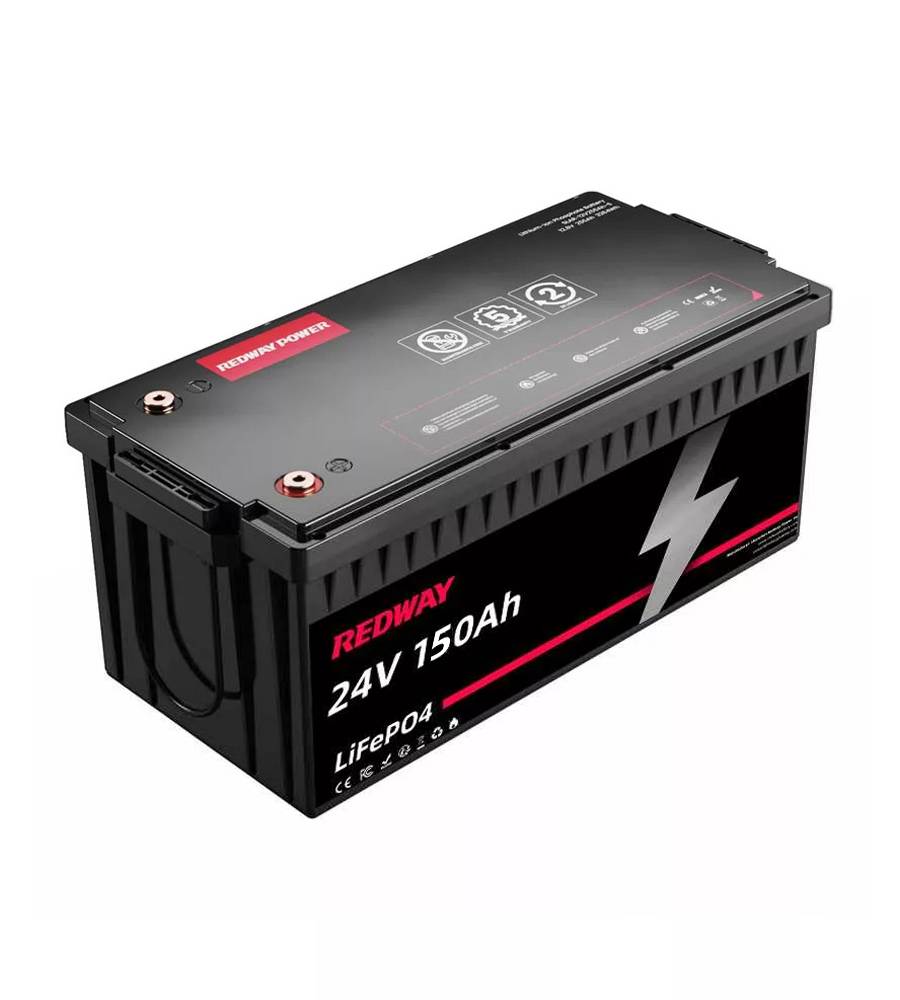

24V 150Ah Lithium Battery

  • Type:24V RV lithium battery
  • Code:
  • Lithium battery Lithium iron phosphate (LFP)

    Rated voltage 25.6V

    Nominal capacity 150Ah

    Nominal energy 3840Wh

    Dimensions (L * W * H) 523 x 269 x 218 mm / 20.6 x 10.6 x 8.6 inches / BCI Group 8D

    Weight 25 kg / 55 lb

    IP level IP65

  • Product Description
  • The Redway 24V 150Ah LiFePO4 Lithium Battery is a robust energy storage solution designed for high-performance applications such as solar systems, RVs, and electric vehicles. With its advanced features and customizable options, this battery is ideal for OEM, ODM, and wholesale buyers looking for reliable and efficient power solutions.

    Key Features:

    · High Capacity: Offers a nominal capacity of 150Ah, providing ample energy storage for various applications.

    · Long Cycle Life: Exceeds 6000 cycles at 80% depth of discharge (DoD) for extended durability.

    · IP65 Rating: Designed to withstand dust and water, ensuring reliable performance in outdoor environments.

    · Smart BMS Protection: Equipped with a comprehensive Battery Management System (BMS) for enhanced safety and efficiency.

    Product Description:

    The Redway 24V 150Ah LiFePO4 Lithium Battery features a nominal voltage of 25.6V and an energy output of 3840Wh, making it suitable for demanding applications like solar energy storage and backup power systems. Weighing approximately 25 kg, this battery is constructed with durable ABS plastic and offers easy installation with standard connectors.

    This battery’s intelligent BMS protects against overcharging, overheating, and short circuits, ensuring safe operation in various conditions. Customizable options are available for OEM/ODM buyers, including features like Bluetooth connectivity and self-heating capabilities. Choose Redway Power for a high-quality battery solution that meets your energy needs efficiently and reliably.





  • 24V150Ah LFP Specifications
    Battery Cell Type LiFePO4
    Voltage 25.6V
    Capacity 150Ah
    Energy 3840Wh
    Peak Charge Voltage 29.2V
    Discharge Cut-off Voltage 20V
    Max Charge Current 100A (Continues)
    Max Discharge Current 100A (Continues)
    Peak Discharge Current 200A (3s)
    Dimensions
    [L x W x H]
    523 x 269 x 218 mm
    20.6 x 10.6 x 8.6 inches
    BCI Group 8D
    Weight 25 kg
    55 lb
    IP Rating IP65
    Max Number of Parallel & Series 4P / 4S
    Internal Resistance ≤10mΩ
    Cycle Life >6000 cycles (DOD 80%)
    Self-discharge 2% (per month)
    Charge Temperature 0°C ~ 60°C
    Discharge Temperature -20°C ~ 60°C
    Optional Upgrades Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / CAN / Anti-theft / Active Balance
    Charger Optional
    BMS JBD / DALY Smart BMS Protection
    Terminal M8
    Battery Case ABS Plastic
    Design Life 10 Years
    Silkscreen Yes
    Label Printing Yes
    Laser Logo Yes
    User Manual Yes
    OEM / ODM Yes
    Certification Cell: UL1642 / CE
    Product: UN38.3 / MSDS
  • What is the nominal voltage and capacity of the Redway 24V 150Ah LiFePO4 battery?

    The Redway 24V 150Ah LiFePO4 battery has a nominal voltage of 25.6V and a capacity of 150Ah, making it suitable for various applications, including solar energy systems, RVs, and electric vehicles.

    How long does the Redway 24V 150Ah battery last?

    This battery boasts an impressive cycle life of over 6000 cycles at 80% depth of discharge (DoD), ensuring long-lasting performance and reliability for demanding energy applications.

    What are the operating temperature ranges for this battery?

    The Redway 24V 150Ah LiFePO4 battery operates effectively within a charge temperature range of 0°C to 60°C and a discharge temperature range of -20°C to 60°C, allowing versatility in various environments.

    What safety features does the Redway battery include?

    It features a smart Battery Management System (BMS) that provides comprehensive protection against overcharging, overheating, and short circuits, ensuring safe operation under various conditions.

    Can the Redway 24V 150Ah battery be customized?

    Yes, Redway offers customization options for OEM/ODM buyers, allowing for variations in specifications and additional features such as Bluetooth connectivity and self-heating capabilities to meet specific needs.

    What are the shipping options for bulk orders?

    Redway provides flexible shipping options including FOB, EXW, and CIF, with delivery available via sea, air, or land in various container sizes (10FT, 20FT, 40FT) for wholesale buyers.
