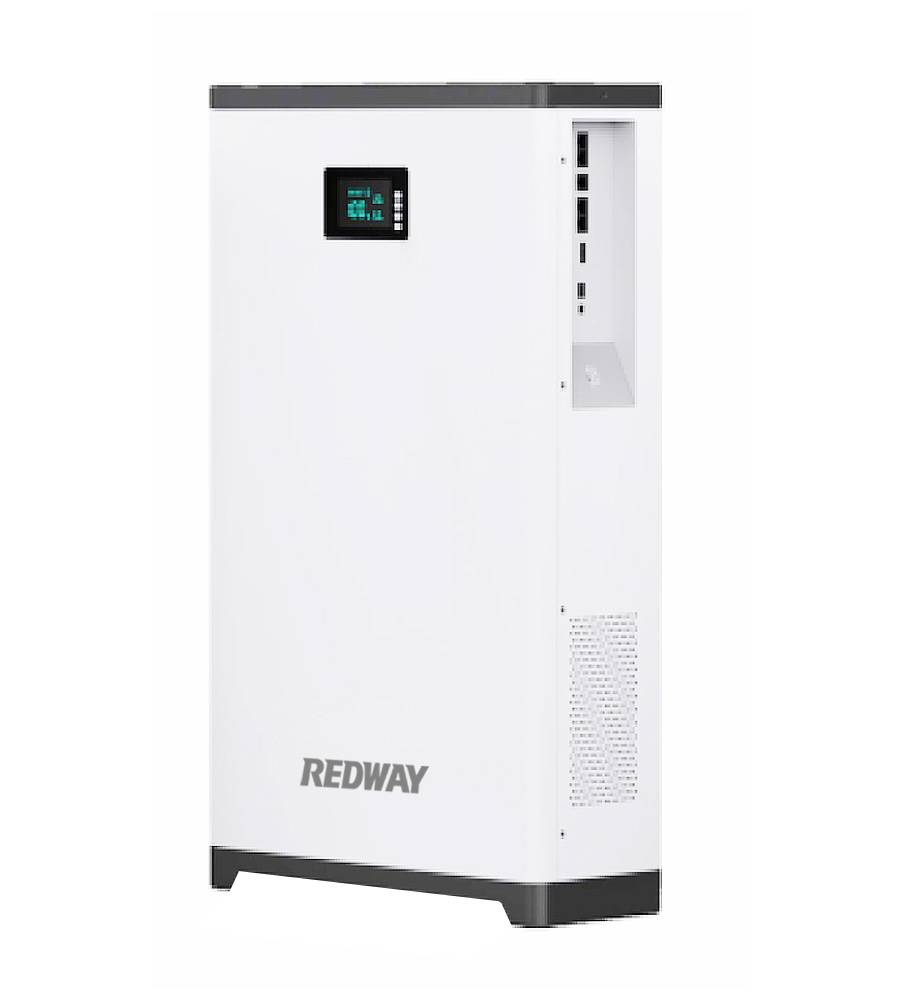

PW51300-H 51.2V 48V 300Ah 15kWh PowerWall Home-ESS Lithium Battery
- Type：48V
- Code：
-
Lithium battery Lithium iron phosphate (LFP)
Rated voltage 51.2V
Nominal capacity 200Ah
Nominal energy 10.24KWh
Dimensions (L * W * H) 860 x 520 x 165 mm
Weight 113 kg
IP level IP20
- Product Description
PW51300-H Specifications Cell Type LiFePO4 Nominal Voltage 51.2V Battery Capacity 300Ah Nominal Energy 15.36kWh Dimension [L x W x H] 780 x 676 x 238 mm Weight 101kg Working Voltage 44.8V~57.6V Charge Voltage 57.6V Discharge Cut-off Voltage 44.8V Rated Charging/Discharge Current 150A Continuous Maximum Charge Current 200A Continuous Maximum Discharge Current 200A Continuous Charging Temperature 0~55°C Discharging Temperature -20~60°C LCD Screen Yes Cooling Natural Max. Parallel Connection 4p to 61.44kWh Cycle Life (25°C / 77℉@60% DOD) >8000 Cycles Cycle Life (25°C / 77℉@80% DOD) >6000 Cycles Self-Discharge Rate <3% per month IP Grade IP20 Battery Case Metal Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit Communication RS485 / RS232 / CAN-bus Optional Functions Bluetooth / WiFi / 4G / 5G / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. Color White Design Life 20 Years Warranty 10 Years User Manual With the Battery Packaging Certification & Safety Standard UN38.3 / IEC62619 / RoHS / EMC / MSDS -
