PRODUCT CENTER

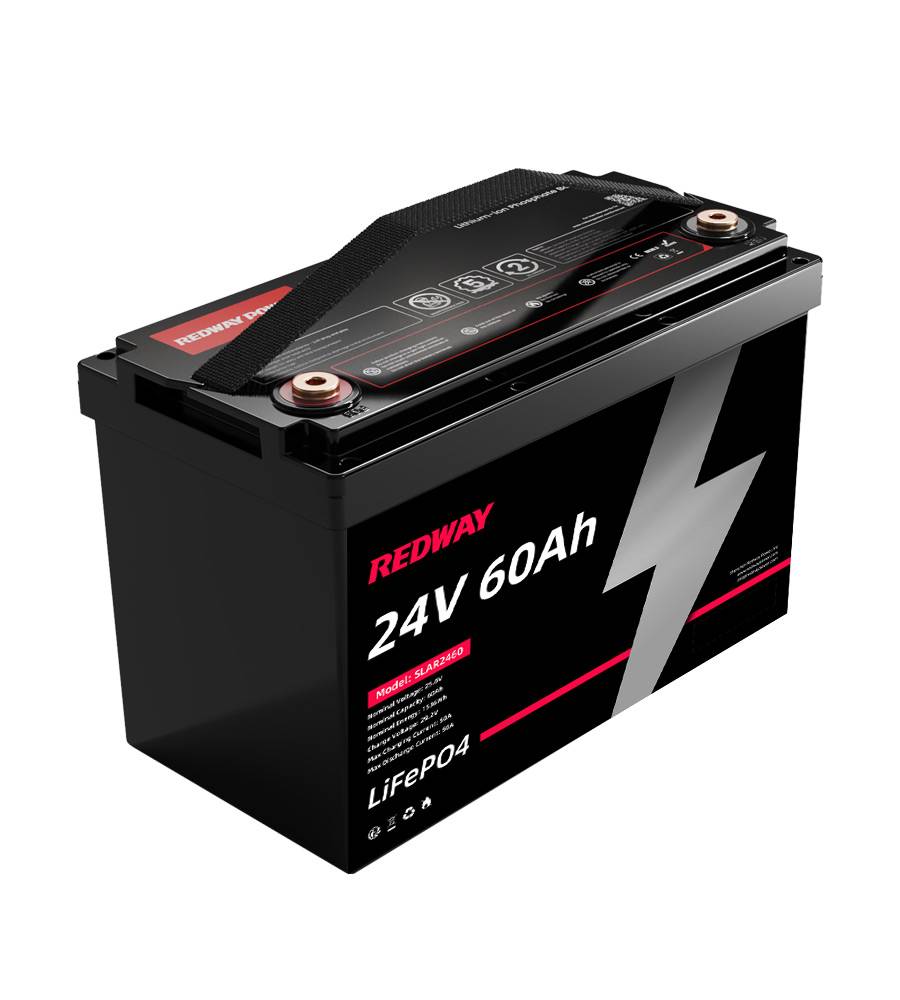

24V 60Ah Lithium Battery (BCI Group 31)

  • Type:24V RV lithium battery
  • Code:
  • Lithium battery Lithium iron phosphate (LFP)

    Rated voltage 24V

    Nominal capacity 60Ah

    Nominal energy 1536Wh

    Dimensions (L * W * H) 330 x 172 x 215 mm / 13 x 6.8 x 8.5 inches / BCI Group 31

    Weight 11 kg / 24 lb

    IP level IP65

  • Product Description
  • The 24V 60Ah Lithium Battery from Redway Power is a high-performance energy solution designed for various applications, including electric pallet trucks and off-grid power systems. Utilizing advanced LiFePO4 technology, this battery provides a nominal energy output of 1536Wh. Ideal for OEM/ODM and wholesale buyers, it offers customization options and reliable performance.

    Key Features:

    · High Energy Capacity: Delivers a nominal capacity of 60Ah, providing 1536Wh of energy, perfect for powering electric pallet trucks, RVs, and marine applications.

    · Long Cycle Life: Designed for over 6000 cycles at 80% Depth of Discharge (DOD), ensuring exceptional longevity and cost-effectiveness.

    · Advanced BMS Protection: Features a high-performance Battery Management System (BMS) that safeguards against overcharging, over-discharging, and short circuits for enhanced safety.

    · Wide Operating Temperature Range: Efficiently operates in temperatures from -20°C to 60°C, making it suitable for various environments.

    · Compact and Lightweight Design: Weighing only 11 kg (24 lbs) and measuring 330 x 172 x 215 mm, this battery is easy to install and transport.

    Product Description:

    Introducing the 24V 60Ah Lithium Battery, a versatile power solution engineered for demanding applications such as electric pallet trucks, automated guided vehicles (AGVs), and off-grid systems. This battery utilizes high-quality LiFePO4 cells, providing a nominal voltage of 25.6V and an impressive energy capacity of 1536Wh, making it ideal for powering industrial machinery.

    Designed to perform efficiently in various conditions, it can be charged within a temperature range of 0°C to 60°C and discharged between -20°C and 60°C. The self-discharge rate is maintained at just 2% per month, allowing for extended storage without loss of capacity.

    With maximum continuous charge and discharge currents of 50A, this battery effectively meets significant power demands. The durable metal casing ensures protection against impacts while maintaining structural integrity.

    For OEM/ODM clients, we offer extensive customization options, including silk-screen labeling and user manuals. Our flexible delivery terms (FOB, EXW, CIF) ensure that your orders are processed promptly within 20 days.

    Choose the Redway Power 24V 60Ah Lithium Battery (BCI Group 31) for unmatched performance, reliability, and innovative technology in your energy storage solutions. Enhance your operational efficiency with our trusted batteries—your journey towards efficient energy starts here!



  • 24V60Ah LFP Specifications
    Battery Cell Type LiFePO4
    Voltage 25.6V
    Capacity 60Ah
    Energy 1536Wh
    Peak Charge Voltage 29.2V
    Discharge Cut-off Voltage 20V
    Max Charge Current 50A (Continues)
    Max Discharge Current 50A (Continues)
    Peak Discharge Current 100A (3s)
    Dimensions
    [L x W x H]
    330 x 172 x 215 mm
    13 x 6.8 x 8.5 inches
    BCI Group 31
    Weight 11 kg
    24 lb
    IP Rating IP65
    Max Number of Parallel & Series 4P / 4S
    Internal Resistance ≤10mΩ
    Cycle Life >6000 cycles (DOD 80%)
    Self-discharge 2% (per month)
    Charge Temperature 0°C ~ 60°C
    Discharge Temperature -20°C ~ 60°C
    Optional Upgrades Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / CAN / Anti-theft / Active Balance
    Charger Optional
    BMS JBD / DALY Smart BMS Protection
    Terminal M8
    Battery Case Metal
    Design Life 10 Years
    Silkscreen Yes
    Label Printing Yes
    Laser Logo Yes
    User Manual Yes
    OEM / ODM Yes
    Certification Cell: UL1642 / CE
    Product: UN38.3 / MSDS
  • What is the nominal capacity of the 24V 60Ah Lithium Battery?

    The 24V 60Ah Lithium Battery has a nominal capacity of 60Ah, providing an energy output of 1536Wh. This makes it suitable for various applications, including RVs, marine use, and off-grid power solutions.

    How long can I expect this battery to last?

    This battery is designed for durability, offering over 6000 cycles at 80% Depth of Discharge (DOD). With proper maintenance, it can last up to 10 years, making it a reliable choice for energy storage.

    What are the operating temperature ranges for charging and discharging?

    The battery can be charged in temperatures ranging from 0°C to 60°C and discharged between -20°C and 60°C. This wide temperature range ensures reliable performance in various environments.

    Does this battery have a built-in Battery Management System (BMS)?

    Yes, the 24V 60Ah Lithium Battery features a high-performance Battery Management System (BMS) that protects against overcharging, over-discharging, and short circuits, ensuring safe operation throughout its lifespan.

    What optional features are available for this battery?

    This battery offers optional features such as self-heating, Bluetooth connectivity, and various communication protocols like RS485 and CAN-bus for enhanced monitoring and management of battery performance.

    How is the battery shipped?

    Shipping options include FOB, EXW, and CIF, with a typical delivery time of 20 days. This flexibility accommodates various logistical needs for wholesale buyers and OEM/ODM clients.
