PRODUCT CENTER

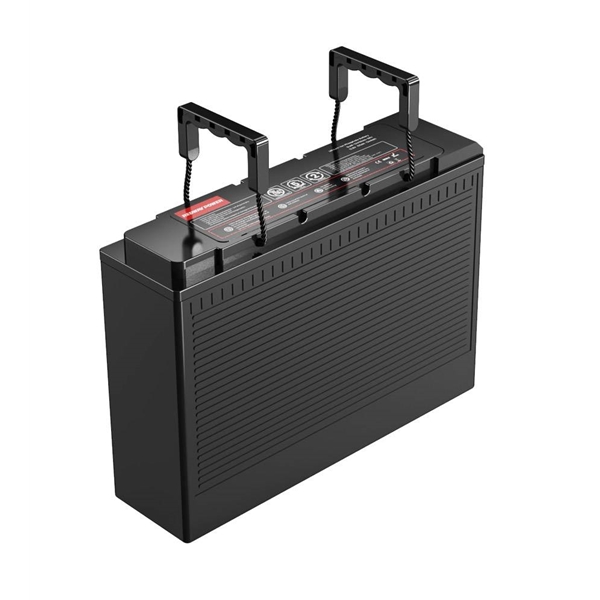

12V 100Ah EU Lithium Battery

  • Type:12V RV lithium battery
  • Code:
  • Lithium battery/Lithium Iron phosphate (LFP)

    Rated voltage /12.8V

    Nominal capacity /10h

    Nominal energy /1344Wh

    Dimensions (L * W * H) /395 x 110 x 286 mm / 15.5 x 4.3 x 11.2 inches/BCI Group 27

    Weight /9.5 kg / 20.9 lb

    IP level /IP65

  • Product Description
  • Introducing the Redway Power 12V 100Ah EU Lithium Battery, Using LiFePO4 (LFP) cylindrical lithium cells. This battery is designed for exceptional energy storage and reliability, making it an ideal choice for OEM, ODM, and wholesale buyers. With a nominal capacity of 100Ah and robust construction, it meets the demands of various applications.

    Key Features:

    · High Energy Output: Delivers a nominal energy of 1344Wh, providing reliable power for demanding applications.

    · Long Cycle Life: Capable of over 4000 cycles at (80% DOD 0.5C), ensuring extended usage and cost-effectiveness.

    · Wide Temperature Range: Operates efficiently in temperatures from -20°C to 65°C, suitable for diverse environments.

    · Low Self-Discharge Rate: Maintains a self-discharge rate of only 3% per month, ensuring readiness when needed.

    · Customizable Options: Available for OEM/ODM projects, allowing tailored specifications to meet your unique requirements.

    Product Description:

    The Redway Power 12V 100Ah EU Lithium Battery is engineered for those who require reliable and efficient energy solutions. With a nominal voltage of 12.8V, this battery utilizes high-quality LiFePO4 cells to ensure safety and stability. Its compact dimensions of 395 x 110 x 286 mm (15.5 x 4.3 x 11.2 inches) and lightweight design at just 9.5 kg (20.9 lbs) make it easy to integrate into various applications.

    This battery supports a maximum continuous charge and discharge current of 100A, making it ideal for high-demand situations. The robust construction features an IP65 rating, providing protection against dust and water ingress. With optional functions such as Bluetooth connectivity, LCD displays, and GPS tracking, this battery can be customized to fit specific needs.

    Backed by a 3-year warranty and compliance with multiple certifications including IEC and UN38.3, the Redway Power 12V 100Ah EU Lithium Battery stands as a trustworthy choice for automotive, renewable energy, marine, and backup power applications. Whether you’re looking to stock up for wholesale distribution or seeking custom solutions for your brand, this battery is your go-to option for superior performance and reliability in the energy sector



  • 12V105Ah-EU Specifications
    Cell Type LiFePO4
    Nominal Voltage 12.8V
    Nominal Capacity 105Ah
    Nominal Energy 1344Wh
    Charge Voltage 14.6V
    Discharge Voltage 10V
    Max. Continues Charge Current 100A
    Max. Continues Discharge Current 100A
    Dimensions
    [L x W x H]
    395 x 110 x 286 mm
    15.5 x 4.3 x 11.2 in
    Weight 9.5 kg
    20.9 lb
    IP Rating IP65 (More request)
    Series & Parallel 4S7P
    Max. Battery Parallel 4P to 5376Wh (More request)
    Internal Resistance ≤30mΩ
    Cycle Life >4000 cycles (DOD 80%)
    Self-Discharge 3% (Per month)
    Charge Temperature 0°C ~ 60°C
    32°F ~ 140°F
    Discharge Temperature  -20°C ~ 65°C
    -4°F ~ 149°F
    Optional Functions Bluetooth / WiFi / LCD / LED Touch Screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP
    Charger High current fast charger
    BMS Intelligent BMS protection
    Terminal M8 Bolts
    Battery Case ABS (Fireproof plastic)
    Warranty 3 Years
    Silk-Screen / Label Printing Yes
    User Manual / Warranty Card Yes
    Customization / OEM / ODM Yes
    Shipment Yes
    Certifications IEC, UN38.3, MSDS (More request)

  • EU Certifications and Export Process

    What are EU certifications for 12V 100Ah lithium batteries?
    EU certifications for 12V 100Ah lithium batteries include CE, UN38.3, and RoHS. These certifications confirm the battery’s safety, environmental compliance, and suitability for export within EU markets.

    Why use EU-certified lithium batteries for industrial applications?
    EU-certified batteries meet rigorous safety standards, ensuring reliability, efficiency, and longer life. This makes them ideal for industrial applications where consistent performance and safety are critical.

    How do Chinese OEMs ensure lithium battery safety standards?
    Chinese OEMs ensure safety by adhering to international standards like CE, UL, and RoHS. They implement strict quality control, including BMS testing, voltage regulation, and temperature protection to meet safety regulations.

    What's the export process for EU-certified batteries from China?
    The export process involves ensuring compliance with EU regulations, acquiring necessary certifications, and using reliable logistics partners. Batteries are inspected, packaged for export, and shipped with required documentation for customs clearance.


    Custom Lithium Batteries and Specifications

    What defines a custom 12V 100Ah deep cycle lithium battery?
    A custom 12V 100Ah deep cycle lithium battery typically features specific capacity, voltage profiles, and tailored BMS. Customization can include battery casing, charging capabilities, and discharge limits to meet unique application needs.

    How to customize 12V 100Ah batteries for specific applications?
    Customization options include capacity adjustments, voltage specifications, BMS configuration, and housing design. OEM manufacturers offer these features based on customer requirements, ensuring optimal performance for specific applications like solar, RVs, or marine use.

    How does lithium chemistry enhance deep cycle battery performance?
    Lithium chemistry offers higher energy density, longer cycle life, and faster charging. Unlike lead-acid, lithium batteries can endure deeper discharge and maintain consistent voltage, making them ideal for deep cycle applications.

    What certifications ensure quality in lithium battery manufacturing?
    Key certifications for lithium battery manufacturing include CE, UL, RoHS, and ISO 9001. These ensure that manufacturers meet strict quality, safety, and environmental standards in the production of lithium batteries.

    What standards govern deep cycle lithium battery production?
    Deep cycle lithium battery production is governed by IEC, UN38.3, and ISO 9001 standards. These ensure safe handling, consistent quality, and reliable performance across global markets.


    Applications and Performance

    Which industries use 12V 100Ah deep cycle lithium batteries?
    Industries using 12V 100Ah deep cycle lithium batteries include solar energy, marine, RVs, electric vehicles, and backup power systems. These batteries are ideal for applications requiring reliable power and long-lasting energy.

    What are key features of 12V 100Ah lithium RV/marine batteries?
    Key features include lightweight design, long cycle life, deep discharge capability, and resistance to vibrations. These batteries offer high efficiency for RVs and marine applications, ensuring reliable power in rugged conditions.

    How does temperature affect 12V lithium battery performance?
    Temperature significantly impacts 12V lithium battery performance. High temperatures may increase internal resistance, while extreme cold can reduce efficiency and capacity. Batteries perform best within 0°C to 45°C range.

    Can OEM batteries be customized for specific RV/marine needs?
    Yes, OEM lithium batteries can be customized for specific RV/marine needs. Customizations may include housing, charge/discharge limits, BMS adjustments, and terminal design to meet specific power demands.


    Certifications and Manufacturing Standards

    What certifications do EU-compliant LiFePO4 battery suppliers have?
    EU-compliant LiFePO4 battery suppliers typically have certifications such as CE, UL, and RoHS, which confirm that their batteries meet EU safety, environmental, and performance standards.

    Are 12V 100Ah LiFePO4 batteries tested for EU safety standards?
    Yes, 12V 100Ah LiFePO4 batteries are rigorously tested for EU safety standards, including CE, RoHS, and UN38.3. These tests ensure safe operation, efficiency, and compliance for European markets.

    Which industries use EU-compliant 12V 100Ah LiFePO4 batteries?
    EU-compliant LiFePO4 batteries are widely used in solar power systems, electric vehicles, marine applications, and backup power systems. Their long life and safety make them suitable for demanding industries.

    How does wholesale pricing for 100Ah LiFePO4 batteries vary?
    Wholesale pricing for 100Ah LiFePO4 batteries depends on order volume, customization, and shipping terms. Prices typically decrease with bulk orders and may range between $500 to $900 per unit.

    Do EU suppliers offer warranties for 12V 100Ah LiFePO4 batteries?
    Yes, most EU suppliers offer warranties of 3 to 5 years for 12V 100Ah LiFePO4 batteries, covering manufacturing defects, performance issues, and safety concerns.


    Safety and Pricing Comparison

    What safety features do these lithium batteries include?
    Lithium batteries include BMS protection, overcharge and over-discharge protection, temperature regulation, and short-circuit prevention. These features ensure safe operation and enhance battery life.

    What is the lifespan of 12V 100Ah lithium solar batteries?
    The lifespan of 12V 100Ah lithium solar batteries is typically 3,000 to 5,000 cycles depending on usage and maintenance. This offers longer service life compared to lead-acid batteries.

    How do they compare to lead-acid in solar storage?
    LiFePO4 batteries offer longer lifespan, higher efficiency, and deeper discharge capabilities compared to lead-acid batteries. They also require less maintenance and have a lighter weight for solar storage systems.

    What is the lifespan of a 12V 100Ah lithium battery?
    A 12V 100Ah lithium battery lasts 3,000 to 5,000 cycles depending on usage conditions. Regular maintenance and optimal charging habits can extend its lifespan.

    What certifications validate cycle life claims for 12V batteries?
    Cycle life claims are validated through certifications such as IEC 62133, UL 2054, and UN38.3. These standards ensure that 12V batteries meet reliable performance over their claimed lifespan.
