Lithium battery Lithium iron phosphate (LFP)
Rated voltage 24V
Nominal capacity 80Ah
Nominal energy 2048Wh
Dimensions (L * W * H) 255 x 205 x 195 mm / 10 x 8.07 x 7.7 inches
Weight 16 kg / 35 lb
IP level IP65

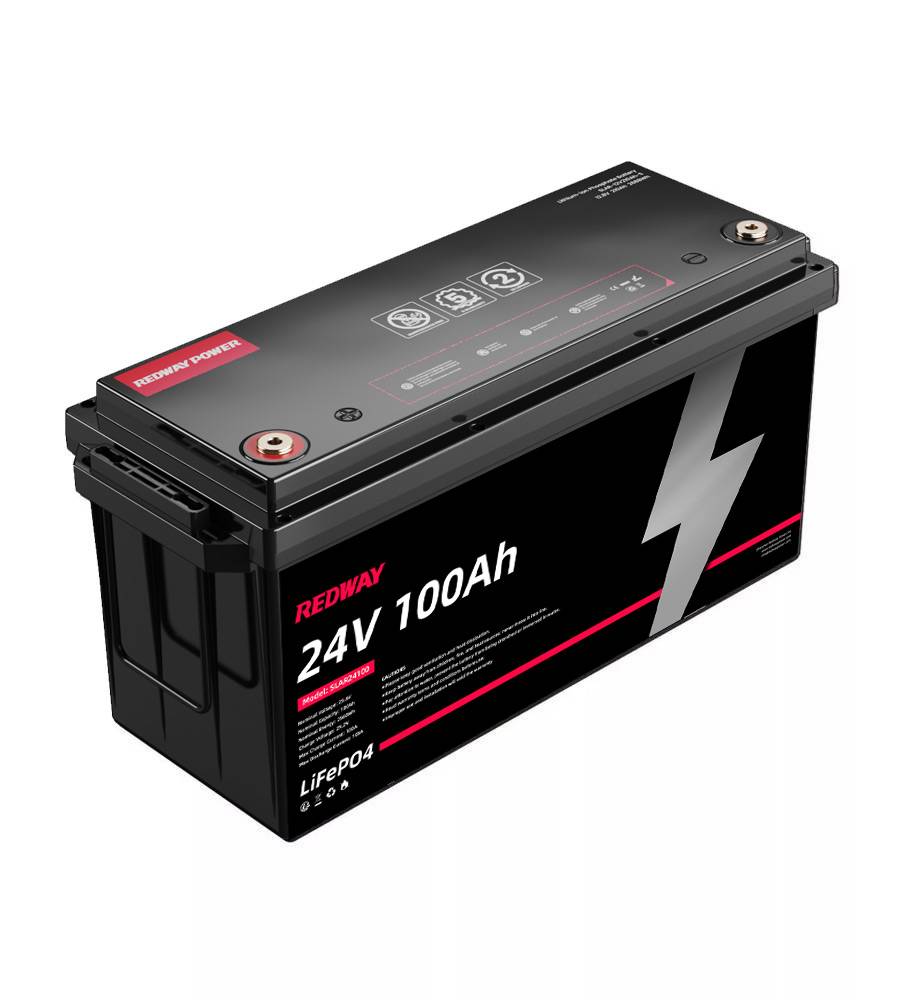

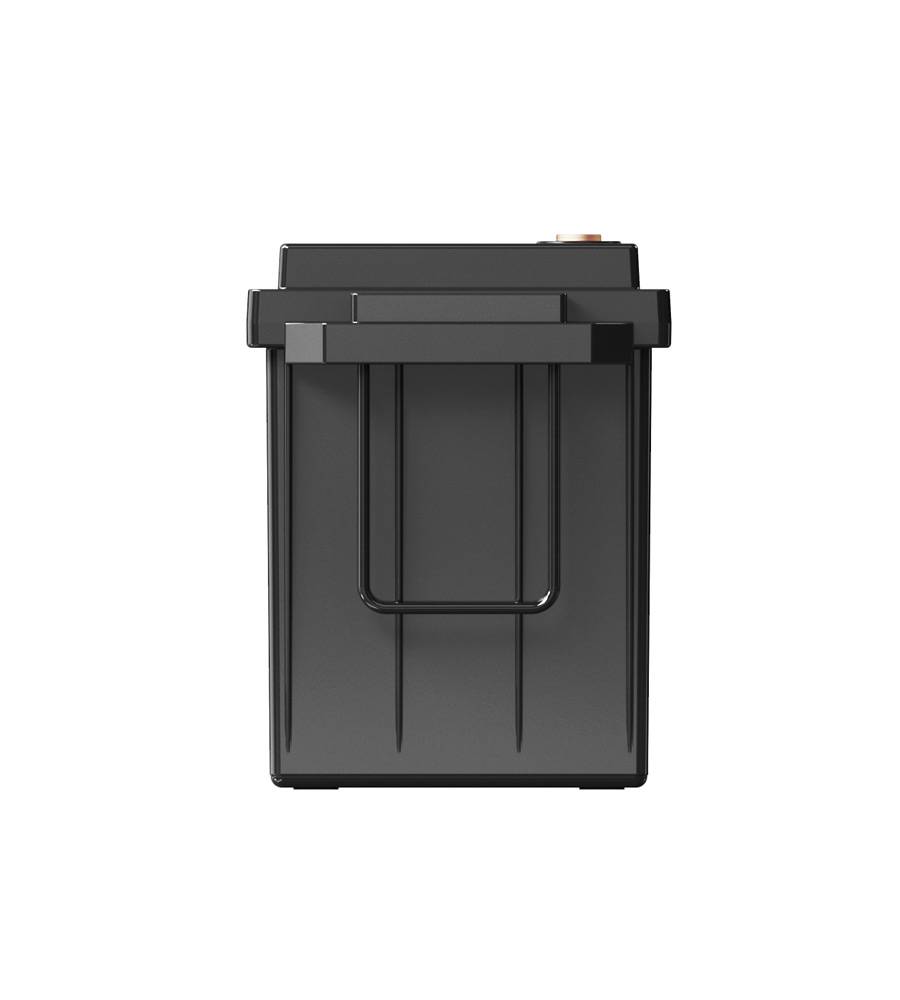

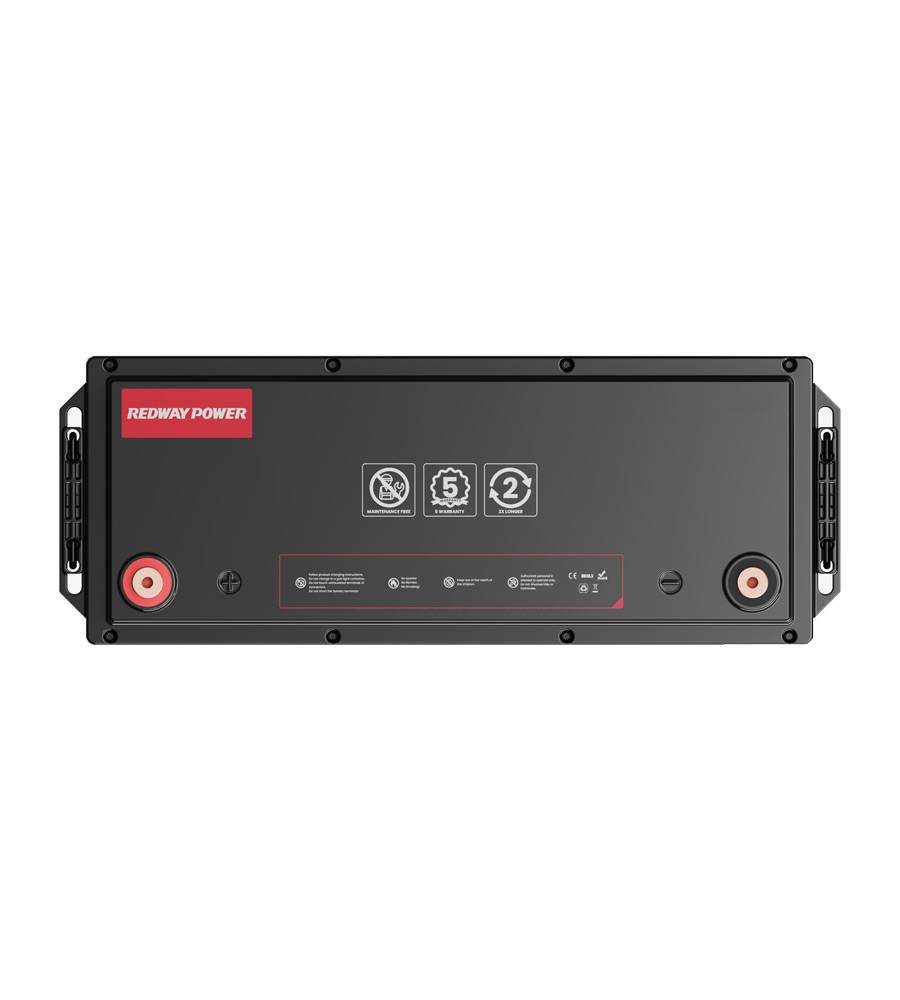

25.6V 24V 100Ah Lithium Battery (LFP) Redway Power offers reliable, efficient LiFePO4 batteries designed for a variety of applications, including Marine, motorhome, motorhome and renewable energy systems. This battery is ideal for OEM, ODM and wholesale buyers looking for high-performance energy storage solutions.
Main featuresLarge capacity: Nominal capacity of 100Ah energy output of 2560Wh, suitable for demanding applications.
Long life: Capable of more than 6000 cycle discharge depth (DOD) of 80%, ensuring durability and service life.
Smart BMS Protection: Equipped with JBD/DALY Smart BMS protects against overcharging, overheating and short circuits.
Customizable options: OEM/ODM customizations are available to meet specific requirements and brand needs.
Multifunctional applications: Ideal for ships, RVS and solar energy storage systems.
Product Description- Redway Power 24V 100Ah lithium batteries feature advanced LiFePO4 technology, which offers superior safety and efficiency compared to traditional lead-acid batteries. With a nominal voltage of 25.6V, the battery supports a maximum continuous charge/discharge current of 100A, making it suitable for a variety of applications. Its compact size (501 x 185 x 242 mm) and weight (19 kg /41.9 lb) make it easy to install in tight Spaces. The battery operates effectively over a wide temperature range, from -20° C to 60 ° C, emissions and 0° C to 60℃ for charging. Optional features such as Bluetooth connectivity and LCD display enhance the user experience. With certifications such as UL1642 and CE, this battery meets international safety standards and is a reliable choice for your energy storage needs.
24V100Ah LFP | Specifications |
---|---|
Battery Cell Type | LiFePO4 |
Voltage | 25.6V |
Capacity | 100Ah |
Energy | 2560Wh |
Peak Charge Voltage | 29.2V |
Discharge Cut-off Voltage | 20V |
Max Charge Current | 100A (Continues) |
Max Discharge Current | 100A (Continues) |
Peak Discharge Current | 200A (3s) |
Dimensions [L x W x H] |
501 x 185 x 242 mm 19.7 x 7.3 x 9.5 inches |
Weight | 19 kg 41.9 lb |
IP Rating | IP65 |
Max Number of Parallel & Series | 4P / 4S |
Internal Resistance | ≤10mΩ |
Cycle Life | >6000 cycles (DOD 80%) |
Self-Discharge | 2% (Per month) |
Charge Temperature | 0°C ~ 60°C |
Discharge Temperature | -20°C ~ 60°C |
Optional Upgrades | Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / CAN / Anti-theft / Active Balance |
Charger | Optional |
BMS | JBD / DALY Smart BMS Protection |
Terminal | M8 |
Battery Case | ABS Plastic |
Design Life | 10 Years |
Silkscreen | Yes |
Label Printing | Yes |
Laser Logo | Yes |
User Manual | Yes |
OEM / ODM | Yes |
Certification | Cell: UL1642 / CE Product: UN38.3 / MSDS |
The 24V 100Ah Lithium Battery has a nominal capacity of 100Ah, providing a total energy output of 2560Wh. This makes it ideal for applications such as marine use, RVs, and renewable energy systems.
LiFePO4 batteries offer numerous benefits, including a long cycle life of over 6000 cycles, low self-discharge rates, and enhanced safety features. They are lightweight and environmentally friendly, making them suitable for various applications.
The 24V 100Ah Lithium Battery operates efficiently within a temperature range of -20°C to 60°C for discharge and 0°C to 60°C for charging. This ensures reliable performance in diverse environmental conditions.
Yes, this battery features a JBD/DALY Smart BMS that provides protection against overcharging, overheating, and short circuits. This enhances safety and optimizes performance during operation.
Yes, the 24V 100Ah Lithium Battery is available for customization, allowing OEM/ODM buyers to tailor specifications such as voltage, capacity, and branding to meet their specific needs.
For bulk orders, we offer various shipping methods including FOB, EXW, and CIF. Shipment options include sea, air, or land transport in container sizes of 10FT, 20FT, 40FT.
A deep cycle 24V 100Ah lithium battery surpasses a deep cycle lead-acid battery in several aspects.
Lighter and Samller: For the same energy capacity, lithium batteries are lighter and occupy less space than lead-acid batteries.
Higher Energy Density:Lithium batteries have a higher energy density, allowing them to store more energy in the same space. This results in a more compact and lightweight design compared to lead-acid batteries.
Longer Cycle Life:Lithium batteries offer a longer cycle life. Despite being expensive, lithium batteries offer 80-90% Depth of Discharge (DOD) and up to 4000 cycles, whereas lead-acid batteries offer 50% DOD and a maximum of 500 Therefore, lithium batteries are durable, safe to use, and have a longer lifespan.
Efficient Charging:Lithium batteries charge more efficiently than lead-acid batteries. They also have a lower self-discharge rate, ensuring stored energy is retained for longer periods without significant loss.
Maintenance-Free Operation:Lithium batteries are maintenance-free compared to lead-acid batteries. This reduces overall operational costs and hassle associated with maintenance tasks, making lithium batteries a more convenient option for users.
