36V 60Ah lithium battery

  • Type:36V RV lithium battery
  • Code:
  • Lithium battery Lithium iron phosphate (LFP)

    Rated voltage 38.4V

    Nominal capacity 60Ah

    Nominal energy 2304Wh

    Dimensions (L * W * H) 501 x 185 x 242 mm / 19.7 x 7.3 x 9.5 inches

    Weight 15 kg / 33.1 lbs

    IP level IP65 (More request)

  • Product Description
  • Description

    -36V 60Ah Lithium battery Redway Power is a high-performance energy solution designed for trolling motors, Marine use and off-grid systems. Using advanced LiFePO4 technology, the battery provides a nominal energy output of 2304Wh. Ideal for OEM/ODM and wholesale buyers, it offers customization options and reliable performance.

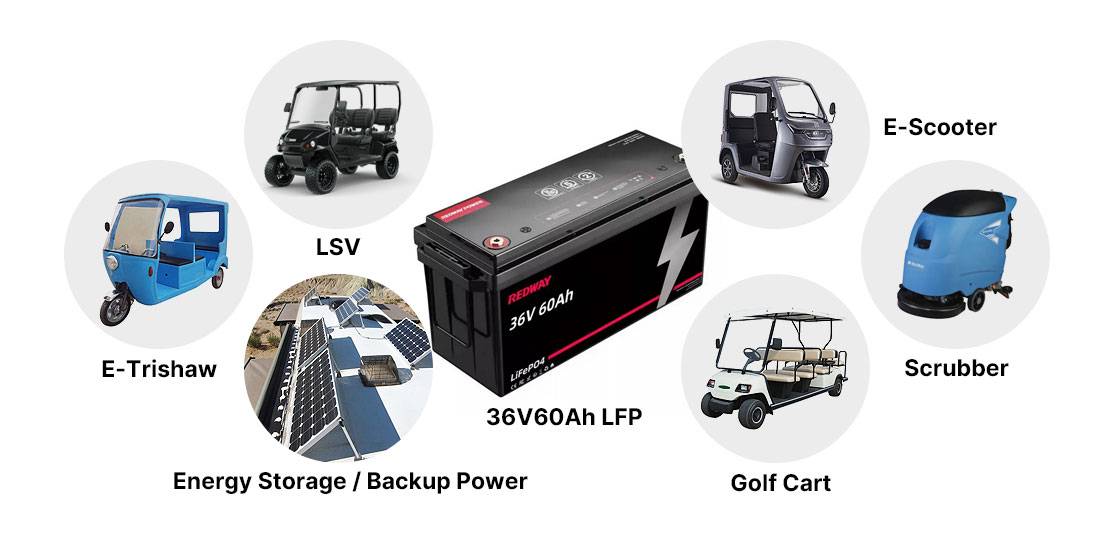

    Main features High energy capacity: Rated at 60Ah, it delivers 2304Wh of energy, making it ideal for powering trolling motors, electric vehicles and renewable energy systems.

    Long cycle life: Designed for 4000 cycle depth of discharge (DOD) of 80%, ensuring excellent service life and cost effectiveness.

    Advanced BMS protection: Enhanced safety with an intelligent battery management system (BMS) that prevents overcharging, overdischarge and short circuits.

    IP67 Waterproof rating: The battery's protection rating is IP67, which can withstand harsh environmental conditions and is suitable for Marine applications.

    Compact and lightweight design: Weighing just 15 kg (33.1 lb) and measuring 501 x 185 x 242 mm, this battery is easy to install and transport. Product Description

    Introducing the 36V 60Ah lithium battery, a versatile power solution designed for demanding applications such as trolling motors, Marine systems and off-grid power setups. Featuring a high-quality lithium iron phosphate battery, this battery offers a rated voltage of 38.4V and an impressive energy capacity of 2304Wh, making it ideal for powering a wide range of devices.

    It is designed for efficient operation under a variety of conditions and can be charged in the following temperature ranges: 0° C to 60℃, and at -20° C and 65° C. The self-discharge rate is maintained at 3% per month, allowing extended storage time without loss of capacity.

    With a maximum continuous charge and discharge current of 60A, this battery can effectively meet a large amount of power demand. The durable ABS plastic housing ensures impact protection while maintaining a lightweight profile.

    For OEM/ODM customers, we offer a wide range of customization options, including screen printed labels and user manuals. Our flexible delivery conditions (FOB, EXW, CIF) ensure that your order is processed in a timely manner within the specified time period of 20 days.

  • 36V60Ah Specifications
    Cell Type LiFePO4
    Nominal Voltage 38.4V
    Nominal Capacity 60Ah
    Nominal Energy 2304Wh
    Charge Voltage 43.8V
    Discharge Voltage 30V
    Max. Continues Charge Current 60A
    Max. Continues Discharge Current 60A
    Dimensions
    [L x W x H]
    501 x 185 x 242 mm
    19.7 x 7.3 x 9.5 in
    Weight 15 kg
    33.1 lb
    IP Rating IP65 (More request)
    Series & Parallel 12S4P
    Max. Battery Parallel 4P to 9216Wh (More request)
    Internal Resistance ≤30mΩ
    Cycle Life >4000 cycles (DOD 80%)
    Self-Discharge 3% (Per month)
    Charge Temperature 0°C ~ 60°C
    32°F ~ 140°F
    Discharge Temperature -20°C ~ 65°C
    -4°F ~ 149°F
    Optional Functions Bluetooth / WiFi / LCD / LED Touch Screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP
    Charger High current fast charger
    BMS Intelligent BMS protection
    Terminal M8 Bolts
    Battery Case ABS (Fireproof plastic)
    Warranty 3 Years
    Silk-Screen / Label Printing Yes
    User Manual / Warranty Card Yes
    Customization / OEM / ODM Yes
    Shipment Yes
    Certifications IEC, UN38.3, MSDS (More request)
  • What is the nominal capacity of the 36V 60Ah Lithium Battery?

    The 36V 60Ah Lithium Battery has a nominal capacity of 60Ah, providing an energy output of 2304Wh. This makes it ideal for various applications, including trolling motors, marine use, and off-grid power systems.力多威 36v60-golf-cart-trishaw-rickshaw-electric-scooter

    How long can I expect this battery to last?

    This battery is designed for durability, offering over 4000 cycles at 80% Depth of Discharge (DOD). With proper maintenance, it can last up to 10 years, making it a reliable choice for energy storage.

    What are the operating temperature ranges for charging and discharging?

    The battery can be charged in temperatures ranging from 0°C to 60°C and discharged between -20°C and 65°C. This wide temperature range ensures reliable performance in various environments.

    Does this battery have a built-in Battery Management System (BMS)?

    Yes, the 36V 60Ah Lithium Battery features an intelligent Battery Management System (BMS) that protects against overcharging, over-discharging, and short circuits, ensuring safe operation throughout its lifespan.

    What optional features are available for this battery?

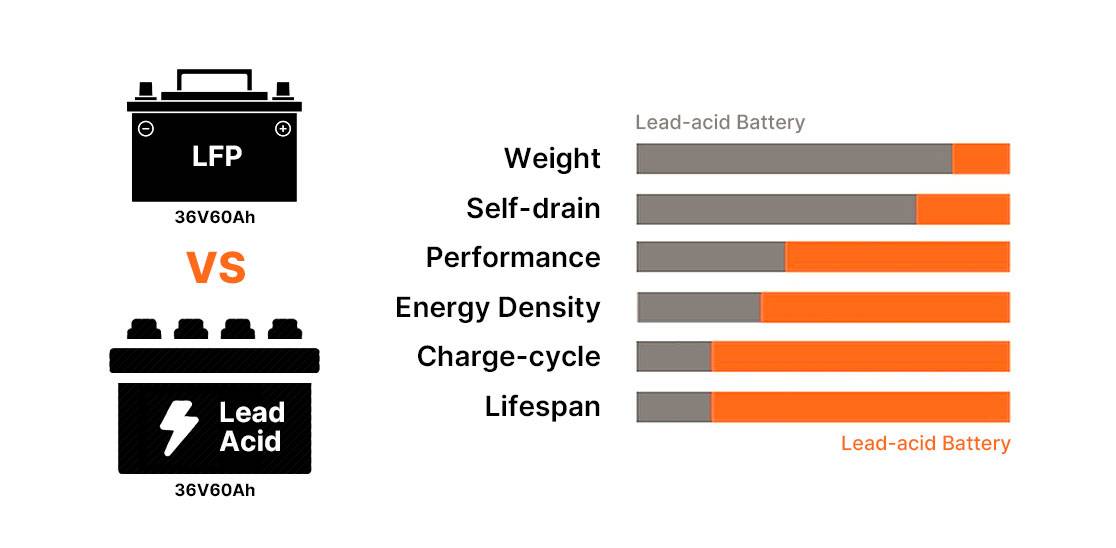

    This battery offers optional features such as Bluetooth, WiFi connectivity, and various communication protocols like RS485 and CAN-bus for enhanced monitoring and management of battery performance.力多威 36v60-lifepo4-vs-lead-acid

    How is the battery shipped?

    Shipping options include FOB, EXW, and CIF, with a typical delivery time of 20 days. This flexibility accommodates various logistical needs for wholesale buyers and OEM/ODM clients.
