PRODUCT CENTER

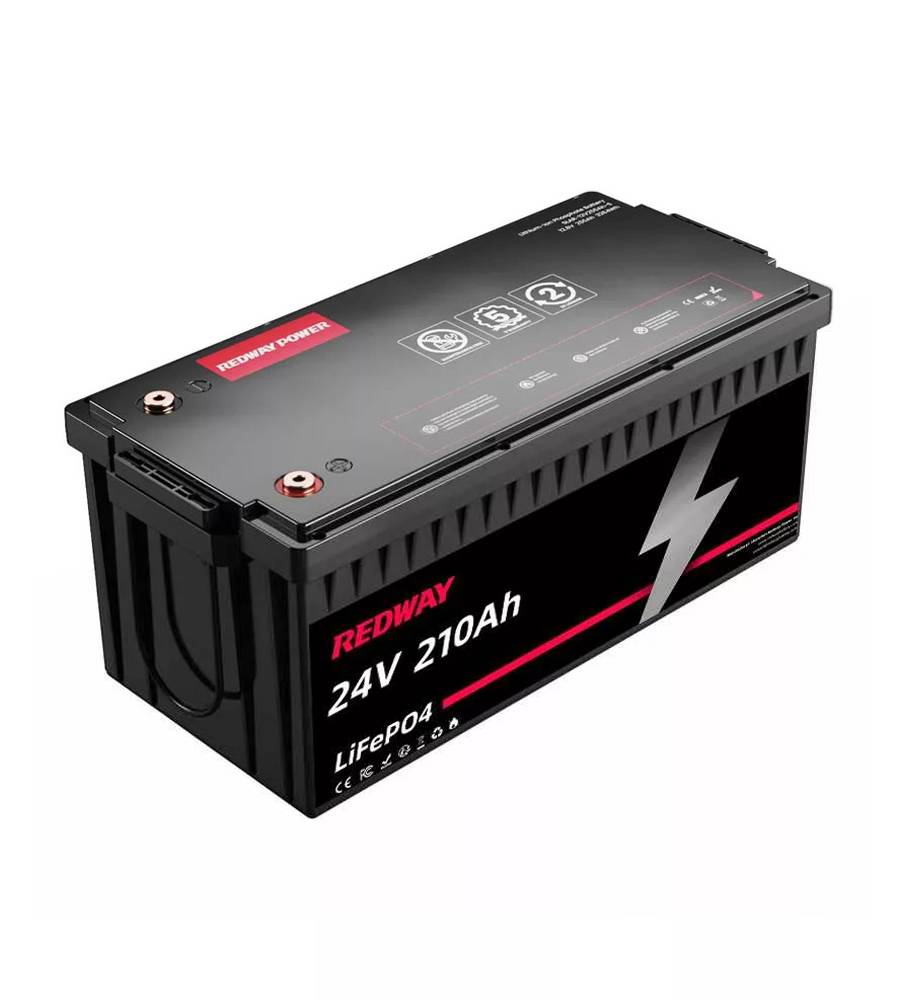

24V 210Ah Lithium Battery

  • Type:24V RV lithium battery
  • Code:
  • Lithium battery Lithium iron phosphate (LFP)

    Rated voltage 25.6V

    Nominal capacity 200Ah

    Nominal energy 5120Wh

    Dimensions (L * W * H) 523 x 269 x 218 mm / 20.6 x 10.6 x 8.6 inches / BCI Group 8D

    Weight 39 kg / 86 lbs

    IP level IP65 (More request)

  • Product Description
  • The 24V 200Ah Lithium Battery from Redway Power is a high-performance LiFePO4 battery designed for demanding energy storage applications. Ideal for OEM, ODM, and wholesale buyers, this battery delivers exceptional power for solar energy systems, RVs, and other high-capacity needs.

    Key Features

    · High Capacity: Provides a nominal capacity of 200Ah and an energy output of 5120Wh, perfect for extensive applications.

    · Extended Cycle Life: Capable of over 5000 cycles at 80% depth of discharge (DOD) 0.5C, ensuring longevity and reliability.

    · Smart BMS Protection: Equipped with an intelligent Battery Management System (BMS) that safeguards against overcharging and overheating.

    · Customizable Options: Available for OEM/ODM customization to meet specific requirements and branding needs.

    · Versatile Applications: Suitable for renewable energy storage, marine use, RVs, and more.

    Product Description

    The Redway Power 24V 200Ah Lithium Battery utilizes advanced LiFePO4 technology, offering superior safety and efficiency compared to traditional batteries. With a nominal voltage of 25.6V, this battery supports a maximum continuous charge/discharge current of 100A, making it versatile for various applications. Its compact dimensions (523 x 269 x 218 mm) and weight (39 kg / 86 lb) allow for easy installation in tight spaces. The battery operates effectively in a wide temperature range, from -20°C to 65°C for discharge and 0°C to 60°C for charging. Optional features such as Bluetooth monitoring and LCD display enhance usability. With certifications including IEC and UN38.3, this battery meets international safety standards, making it a reliable choice for your energy storage needs. For bulk orders or customization inquiries, please contact us to discuss your specific requirements.



  • 24V200Ah Specifications
    Cell Type LiFePO4
    Nominal Voltage 25.6V
    Nominal Capacity 200Ah
    Nominal Energy 5120Wh
    Charge Voltage 29.2V
    Discharge Voltage 20V
    Max. Continues Charge Current 100A
    Max. Continues Discharge Current 100A
    Dimensions
    [L x W x H]
    523 x 269 x 218 mm
    20.6 x 10.6 x 8.6 inches
    BCI Group 8D
    Weight 39 kg
    86 lbs
    IP Rating IP65
    Series & Parallel 8S1P
    Ma. Battery Parallel 4
    Internal Resistance ≤10mΩ
    Cycle Life >5000 cycles (DOD 80% 0.5C)
    Self-Discharge 1.5% (Per month)
    Charge Temperature 0°C ~ 60°C
    Discharge Temperature -20°C ~ 65°C
    Optional Functions Bluetooth / APP / WiFi / LCD /  RS485 / RS232 / CAN / 4G / GPS / Self-heating / etc.
    Charger Optional
    BMS JBD BMS
    Terminal M8
    Battery Case ABS
    Warranty 3 Years
    Silk-Screen / Label Printing Yes
    User Manual / Warranty Card Yes
    Customization / OEM / ODM Yes
    Shipment Yes
    Certifications IEC, CE, UL1642, UN38.3, MSDS
  • What is the capacity of the 24V 210Ah Lithium Battery?

    The 24V 210Ah Lithium Battery has a nominal capacity of 210Ah, providing a total energy output of 5376Wh. This makes it suitable for high-demand applications such as solar energy storage and electric vehicles.

    What are the advantages of using LiFePO4 batteries?

    LiFePO4 batteries offer several benefits, including a long cycle life of over 4000 cycles, high safety due to thermal stability, and low self-discharge rates. They are lightweight and environmentally friendly, making them ideal for various applications.

    What is the operating temperature range for this battery?

    The 24V 210Ah Lithium Battery operates efficiently in a temperature range of -20°C to 65°C for discharge and 0°C to 60°C for charging. This ensures reliable performance in diverse environmental conditions.

    Does this battery include a Battery Management System (BMS)?

    Yes, this battery features an intelligent Battery Management System (BMS) that provides protection against overcharging, overheating, and short circuits. This enhances safety and optimizes performance during operation.

    Can the battery be customized for OEM/ODM orders?

    Yes, the 24V 210Ah Lithium Battery is available for customization, allowing OEM/ODM buyers to tailor specifications such as voltage, capacity, and branding to meet their specific needs.

    What shipping options are available for bulk orders?

    For bulk orders, we offer various shipping methods including FOBEXW, and CIF. Shipment options include sea, air, or land transport in container sizes of 10FT, 20FT, 40FT, and 60FT.
